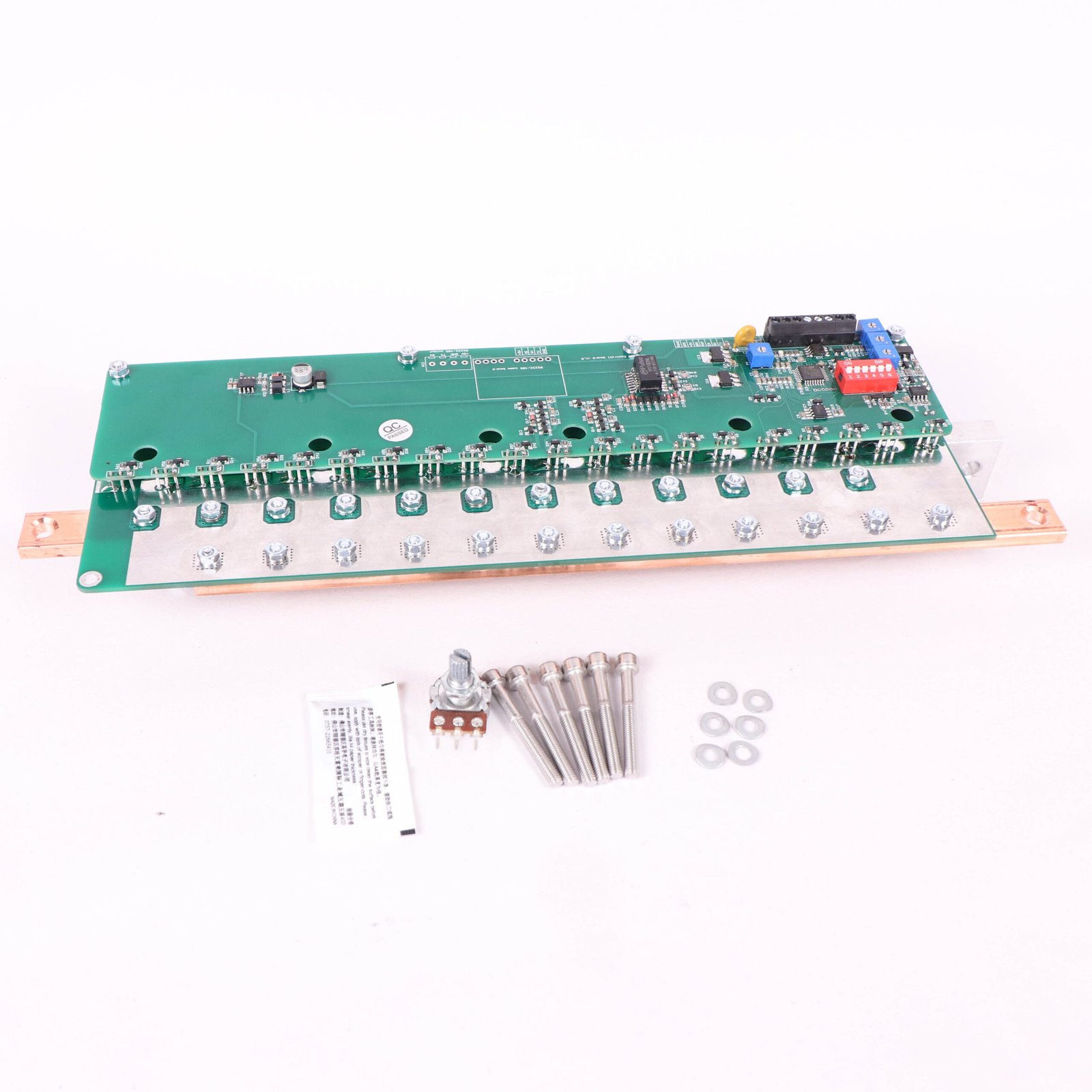

Crocodile HL50400 [50V, 600A]

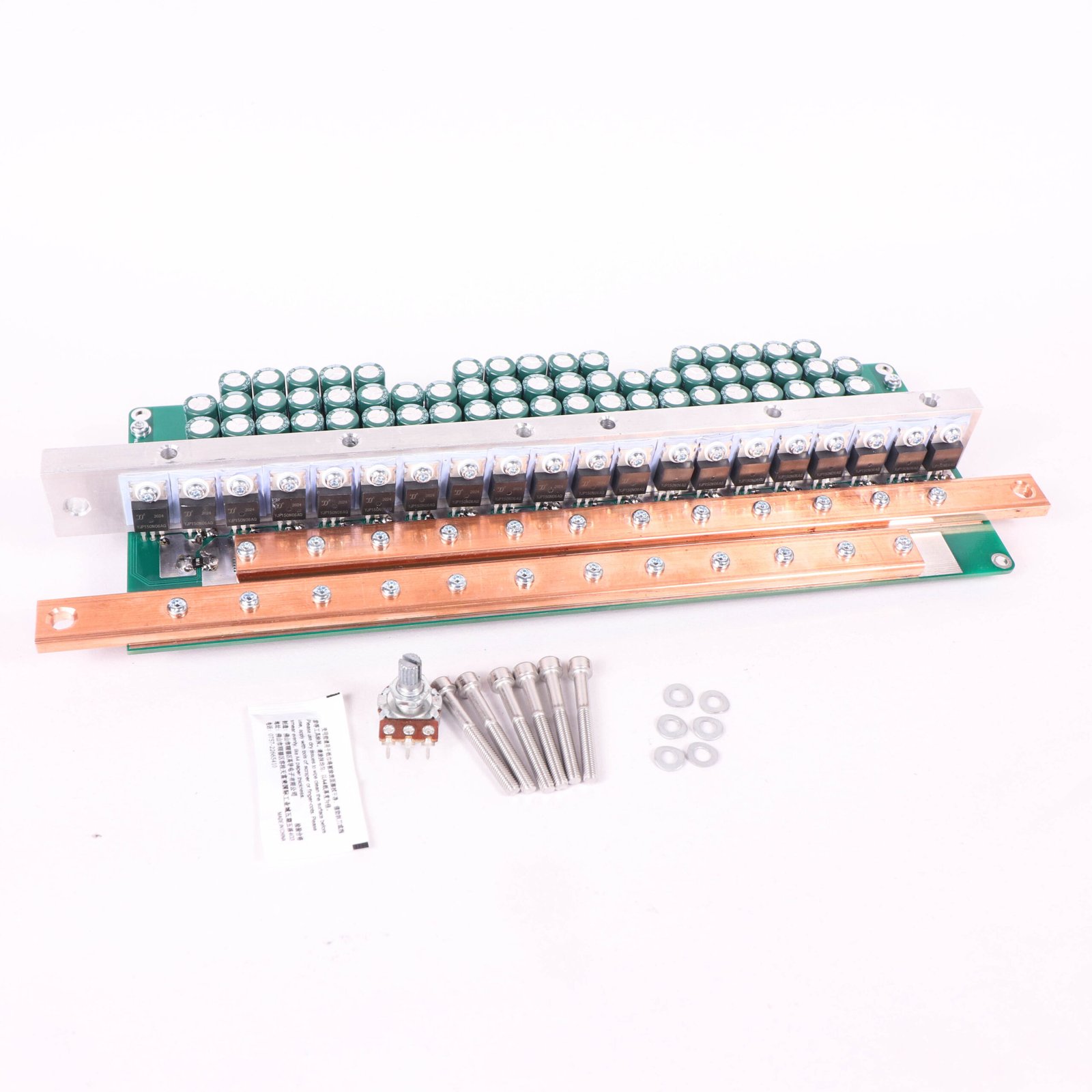

Crocodile HL50400 [50V, 600A] - Image 2

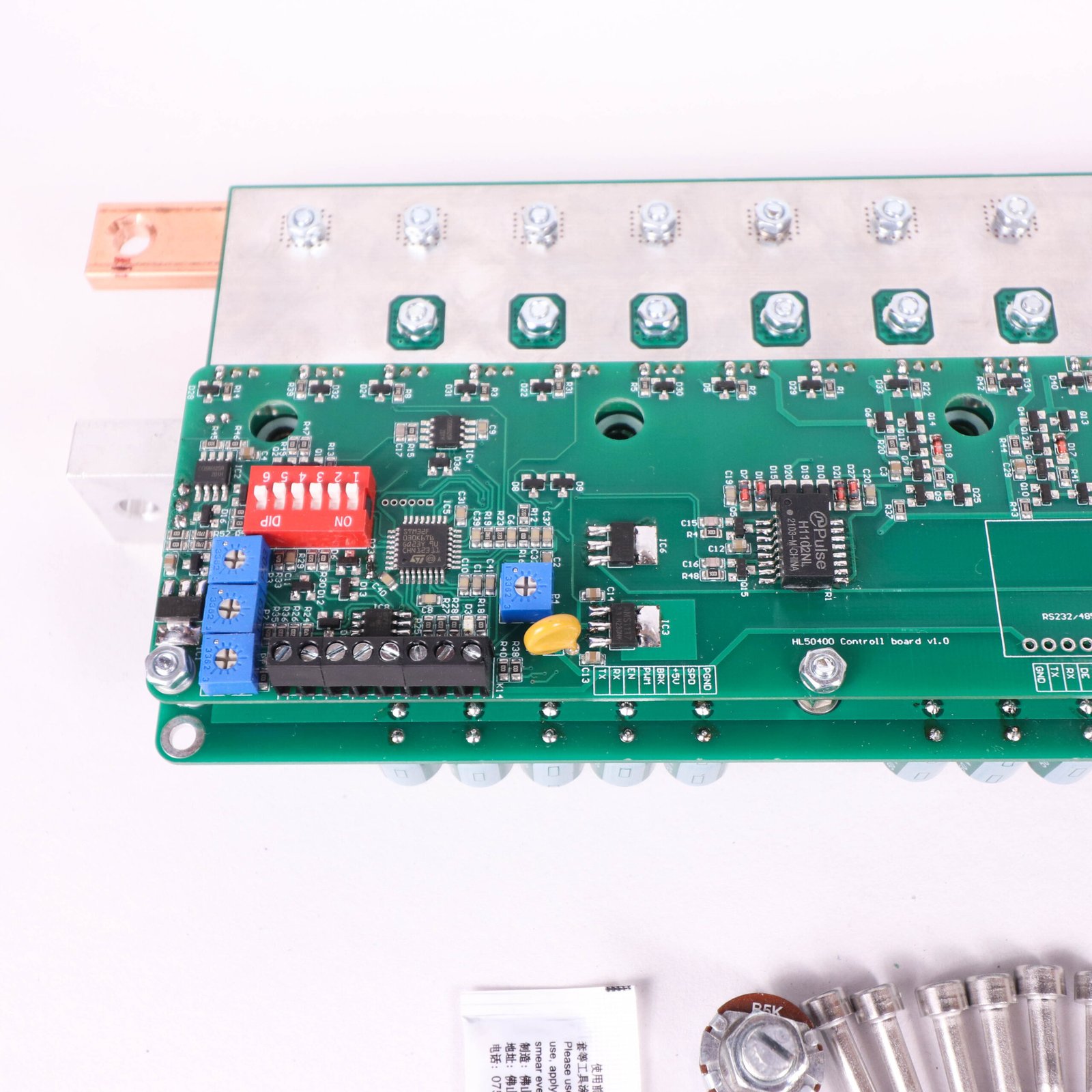

Crocodile HL50400 [50V, 600A] - Image 3
Crocodile HL50400 [50V, 600A] - Image 4
✓ EU Warehouse
✓ 2-Year Warranty
✓ Genuine Crocodile

Crocodile HL50400 [50V, 600A]

★★★★★
4.8
· 39 verified ratings
Tax included · Shipping calculated at checkout.

  • DC brushed PWM speed motor controller
  • Regenerative brake
  • 600A output load current
  • Current limit and temperature protection
  • Wide range of controlling modes
  • Adjustable top speed and speed regulation for stable output
Ships Worldwide

Ships from EU warehouse – from $15

2-Year Warranty

Full manufacturer coverage

30-Day Returns

No-hassle return policy

Secure Payment

Visa, Mastercard, PayPal, Apple Pay

↓ Wiring Diagram PDF
↓ Full Datasheet PDF
4 Flexible Input Control Modes

Standard potentiometer or hall throttle (0.8–4.2V), joystick mode, direct PWM input (0–95%), or RC PWM receiver input 1.5ms ±1ms. Fits any installation out of the box.

Regenerative Braking

Captures kinetic energy back into the battery during braking. Essential for EV conversions and forklifts where efficiency matters. 2-quadrant operation in one direction.

High-Speed 32-bit Cortex Processor

18 kHz switching frequency for whisper-quiet operation. Precise 0–98% duty cycle control with adjustable acceleration ramp from 0 to 40 seconds.

Smart Current Limiting

Adjustable normal current limit from 0–50A, with 70A peak capacity. Protects both motor and controller from overload, extending system lifespan significantly.

Full Serial Communication Control

Completely controllable via TX/RX serial connector with extended parameter access. Integrate directly with PLCs, microcontrollers, Raspberry Pi, Arduino, and more.

Compact & Lightweight

Just 65 × 76 × 28 mm and 100 g without heatsink. M6 high-current connections on all power terminals. Designed for tight installations in EVs, boats, and industrial machinery.

Max Voltage50V DC
Normal Output Current0–50A (adjustable)
Peak Current70A
Supply Voltage Range10–50V DC (universal)
Switching Frequency18 kHz
Duty Cycle0–98%
Processor32-bit ARM Cortex
Control Modes4 modes (potentiometer, hall, PWM, RC)
Speed Control Input0–5V universal analog/PWM
Acceleration Ramp0–40 seconds (adjustable)
BrakingRegenerative (energy recovery)
Operation2-quadrant (drive + regen)
Power ConnectionsM6 bolts (high-current rated)
Serial CommunicationTX/RX connector
Dimensions65 × 76 × 28 mm
Weight100 g (board only)
EV Conversions

Perfect for electric bike, scooter, kart, or motorcycle builds. Handles regenerative braking for extended range.

Forklifts & AGVs

Reliable current limiting and regen braking make it ideal for material-handling vehicles in warehouse environments.

Marine & Boats

Compact and lightweight with wide voltage range. Salt-air resilient board design for marine thruster applications.

Industrial Automation

Serial interface enables seamless PLC integration. PWM and analog inputs work with any industrial control system.

Robotics & RC

RC PWM receiver input ready. Arduino and Raspberry Pi compatible via serial. Great for autonomous robot drives.

DIY & Maker Projects

Plug-and-play setup with standard potentiometer support. No coding required for basic speed control applications.
